EZ-DRY WASTEWATER
SLURRY / SLUDGE DRYERS

electric-evaporator-banner-mobile

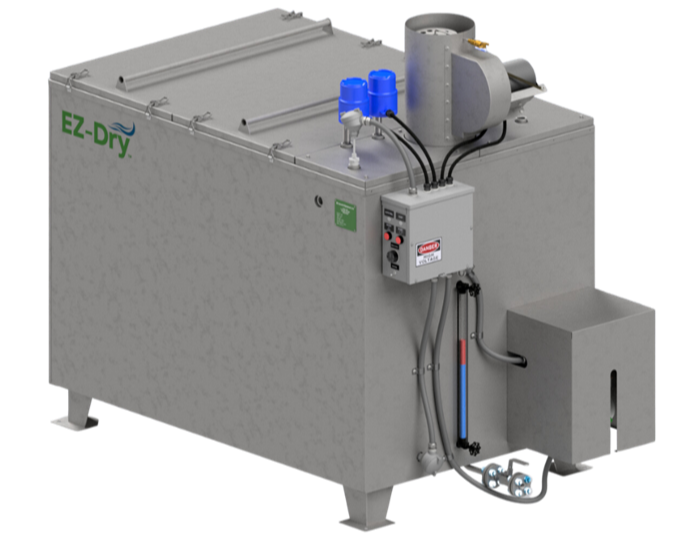

ez-dry1-1

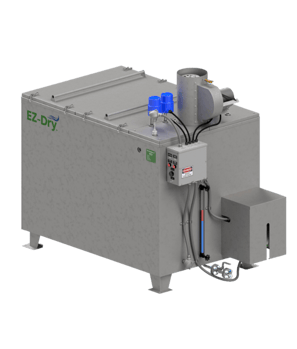

EZ-DRY Slurry Dryer
EZD-G13
(13 GPH)

  • $32,995
    316L Stainless Steel
  • $41,995
    2205 Duplex
  • 30% Lower Cost Than Comparable Systems
  • Gas fired - 205,000 BTU/hr
  • 13 gallons per hour*
  • Standard materials of construction for wetted components are 316L Stainless Steel or 2205 duplex.  Upgraded alloys available.
    View specifications
  • 112 gallon capacity tank
  • Footprint:  64" x 44" x 48" (L x W x H)
  • 120V-1PH
  • 1 Year Limited Warranty
CONTACT SALES

Achieve ZLD with EZ-DRY Wastewater Slurry Dryer

Engineered for Efficiency — At 30% Lower Cost Than Comparable Systems

Ready to completely eliminate liquid waste hauling or liquid discharge from your facility? The easy to install, compact, gas fired or all-electric EZ-Dry slurry dryer from EZ Industrial Equipment reduces your waste stream or slurry to a dry solid. Eliminate liquid waste hauling with EZ-Dry!





KEY FEATURES & BENEFITS

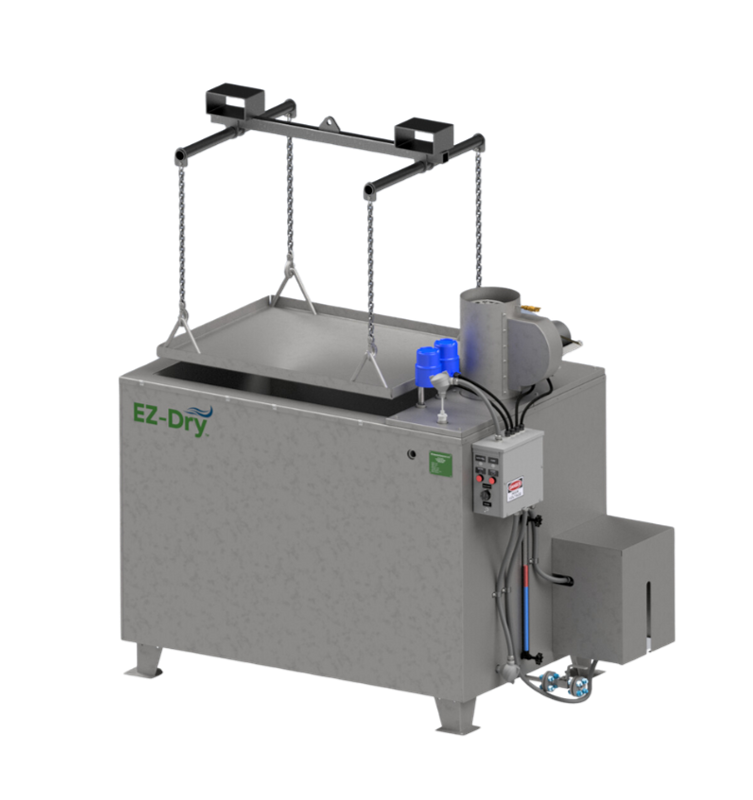

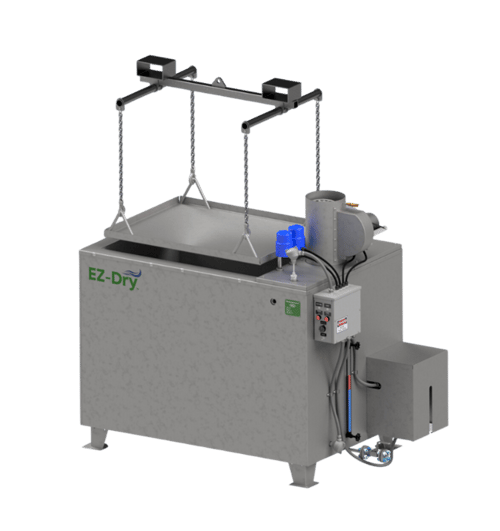

AStainless Steel Exterior Skins (click for info) BSolids Removal Tray (click for info) CCorrosion Resistant Materials of Construction (click for info) DReliable Burner System (click for info) EReliable Instrumentation (click for info) FEZ-LOGIC™ Controls (click for info) GAnchor Holes in Foot Pads (click for info) ez-dry7
A

Stainless Steel Exterior Skins

Stainless steel exterior skins to enhance longevity of the equipment.
B

Solids Removal Tray

The rugged design of EZ-Dry's solids removal tray allows for easy removal of residual solids.

C

Corrosion Resistant Materials of Construction

The wetted surfaces are fabricated utilizing corrosion resistant materials of construction.  EZ-Dry is available in the following MOC:

  • 316SS
  • 2205 duplex
  • 6% Moly alloys
  • 2507 super duplex
  • Hastelloy C276, C22
  • Contact EZ for additional options
D

Reliable Burner System

The reliable EZ-Dry burners (gas fired systems only) can utilize natural gas or propane.  EZ-Dry's flue gas exhaust system, comes with test ports used to confirm combustion efficiency, maximizing safe and efficient long term operation.
E

Reliable Instrumentation

EZ-Dry is equipped with reliable level switches and thermocouples promoting safe operation.
F

EZ-LOGIC™ Controls

The core principle of EZ-Dry is simplicity of operation.  No PLC!  The simple yet sophisticated control system is equipped with instrumentation-based safeties and redundancies.
G

Anchor Holes in Foot Pads

1/2" holes in foot pads allow anchoring to facilitate bolting unit to floor.

*Evaporation rate is based on tap water after reaching a boil. Evaporation rate may vary depending on altitude, ambient temperature and humidity, solids buildup on evaporator surfaces, boiling point elevation, exhaust stack configuration, off-spec power supply or gas pressure, characteristics of wastewater, etc.

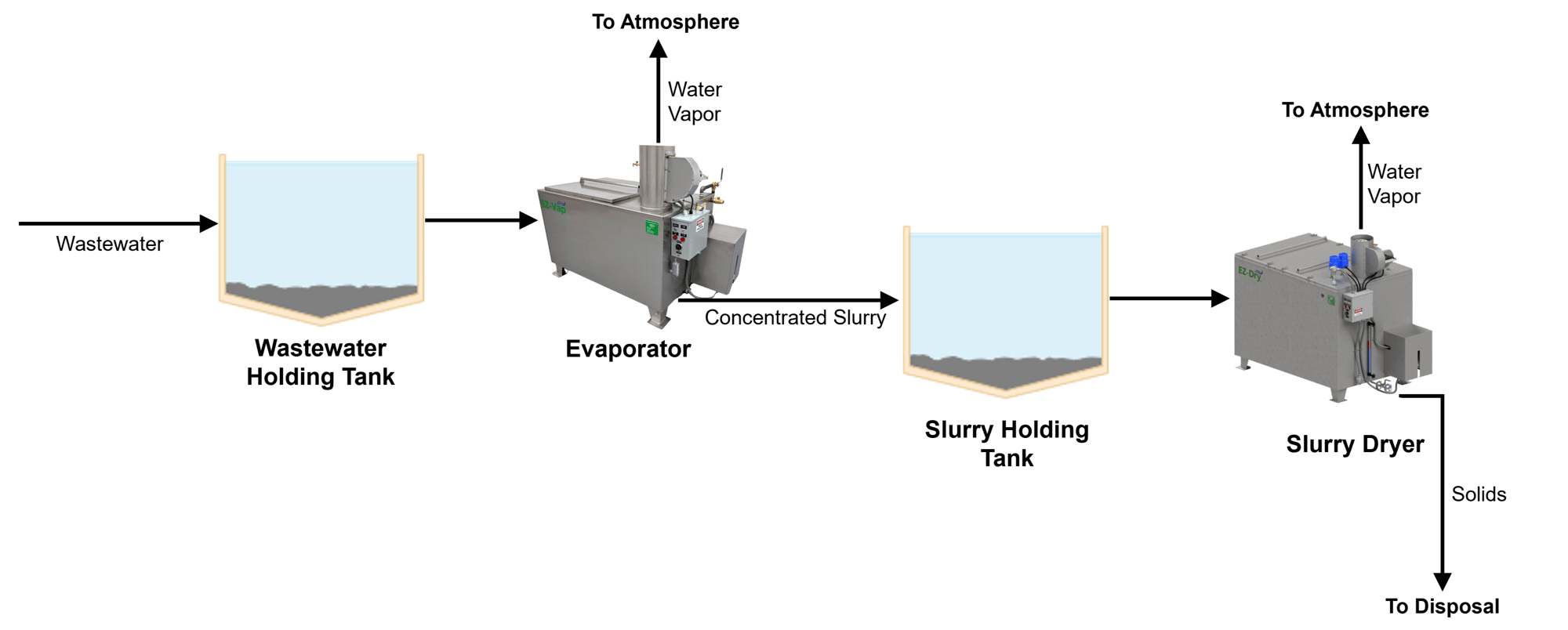

ZLD Wastewater Treatment Solutions - Typical Layout:

ZLD flow diagram-1
Primary Treatment: Evaporator system for bulk dewatering

Secondary Treatment: Dryer system for final dewatering, solids to landfill

EZ-Dry Slurry Dryer Specifications

CLICK TO DOWNLOAD SPECS

Heat Source:
Evaporation Rate:
Energy Consumption:
Gas Supply Pressure:
Gas Inlet:
Power Supply:
Full Load Amps (No Fill Pump):
Tank Capacity:
Operating Volume:
Dimensions (L x W x H):
Shipping Dims. (L x W x H):
Empty Weight:
Approx. Shipping Weight:
Exhaust Stack:
Feed Water Inlet:
Thermal Oil Fill Inlet:
Thermal Oil Vent:
Thermal Oil Drain:
Materials of Construction:
  EZD-E13
Heat Source: Electric
Evaporation Rate: 13 GPH
Energy Consumption: 34 kW/hour
Gas Supply Pressure: N/A
Gas Inlet: N/A
Power Supply: 240V-3PH or 480V-3PH
Full Load Amps (No Fill Pump): 86A (240V) or 43A (480V)
Tank Capacity: 224gal.
Operating Volume: 112 gal.
Dimensions (L x W x H): 64" x 44" x 48"
Shipping Dims. (L x W x H): 86" x 60" x 60"
Empty Weight: 1,560 lbs
Approx. Shipping Weight: 2,770 lbs
Exhaust Stack: 10" OD
Feed Water Inlet: 1" FNPT
Thermal Oil Fill Inlet: 1" FNPT
Thermal Oil Vent: 2" MNPT
Thermal Oil Drain: 1" Valve
Materials of Construction: SS316L or 2205 Duplex**
  EZD-G13
Heat Source: Gas Fired
Evaporation Rate: 13 GPH
Energy Consumption: 205,000 BTU/hour
Gas Supply Pressure: 7" - 14" W.C.
Gas Inlet: 3/4" NPT
Power Supply: 120V-1PH
Full Load Amps (No Fill Pump): 18.5A
Tank Capacity: 224 gal.
Operating Volume: 112 gal.
Dimensions (L x W x H): 64" x 44" x 48"
Shipping Dims. (L x W x H): 64" x 60" x 60"
Empty Weight: 1,835 lbs
Approx. Shipping Weight: 3,245 lbs
Exhaust Stack: 10" OD
Feed Water Inlet: 1" FNPT
Thermal Oil Fill Inlet: 1" FNPT
Thermal Oil Vent: 2" MNPT
Thermal Oil Drain: 1" Valve
Materials of Construction: SS316L or 2205 Duplex**
*Evaporation rate is based on tap water after reaching a boil. Evaporation rate may vary depending on altitude, ambient temperature and humidity, solids buildup on evaporator surfaces, boiling point elevation, exhaust stack configuration, off-spec power supply or gas pressure, characteristics of wastewater, etc.
**EZ-Dry is also available in higher alloys for corrosion resistance in corrosive applications.

OPTIONS & ACCESSORIES

centrifugal feed pump

Self-Priming Feed Pump

The 50 gpm self-priming centrifugal pump is used to fill the evaporator from a nearby feed tank or pit. Energized manually by a toggle switch on the control panel. Heavy duty cast iron, 50 gpm, with 1/2 HP motor.

Pre-Plumbed Fill Pump

Pre-Plumbed Fill Pump

The EZ-Dry fill assembly includes the components and controls to facilitate batch filling of the evaporator.  The fill assembly includes valve, centrifugal feed pump, feed line piping, and controls.

suction wand assembly

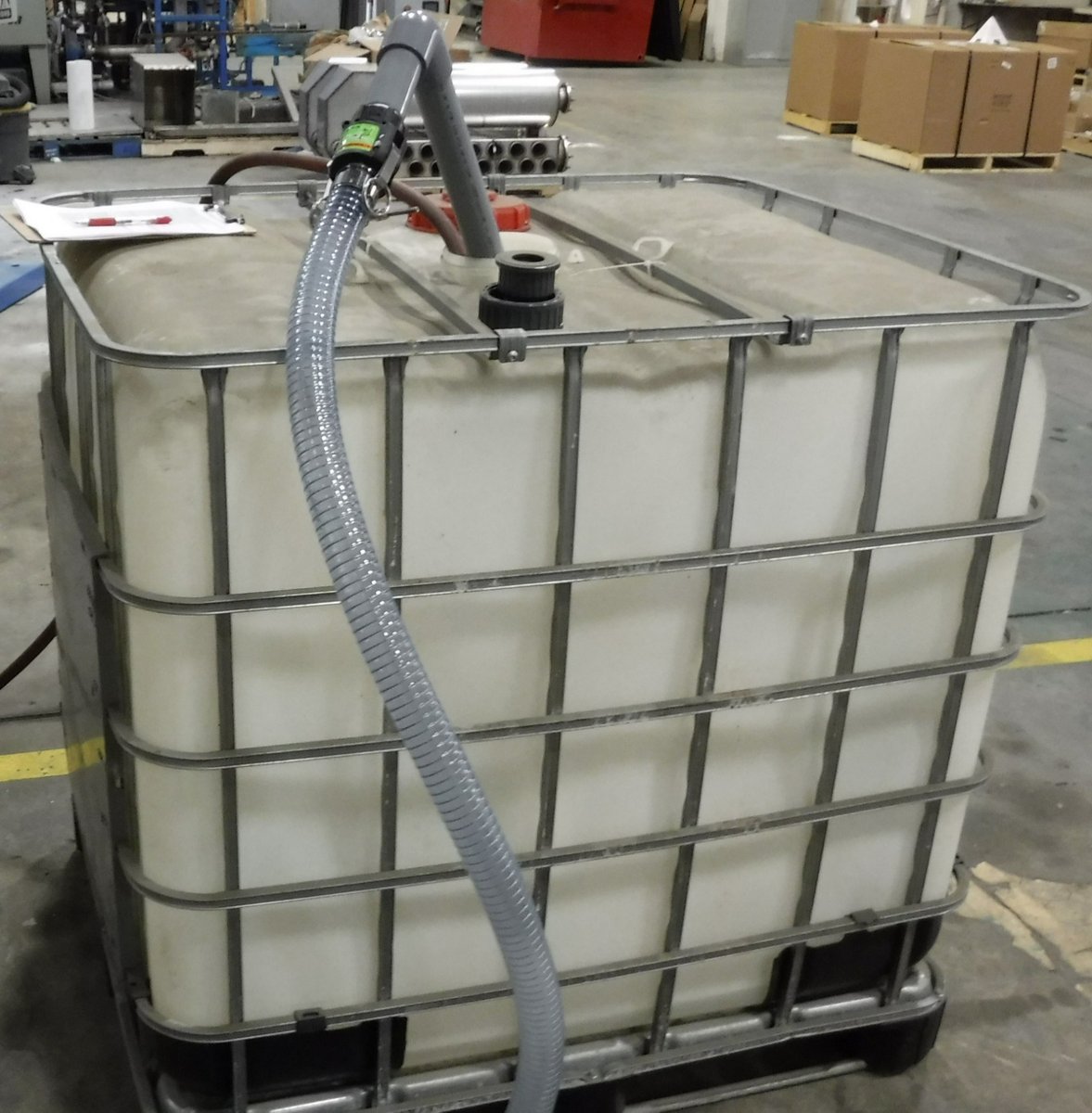

Suction Wand/Hose Assembly

Ergonomically designed rigid CPVC wand with 20' x 1" flexible vacuum hose used to pump water from a feed tote or tank into the dryer.  Discharge end of hose connects to the inlet of a 1" centrifugal pump (pump sold separately) using an included quick disconnect cam and groove fitting.

DF3000 defoamer

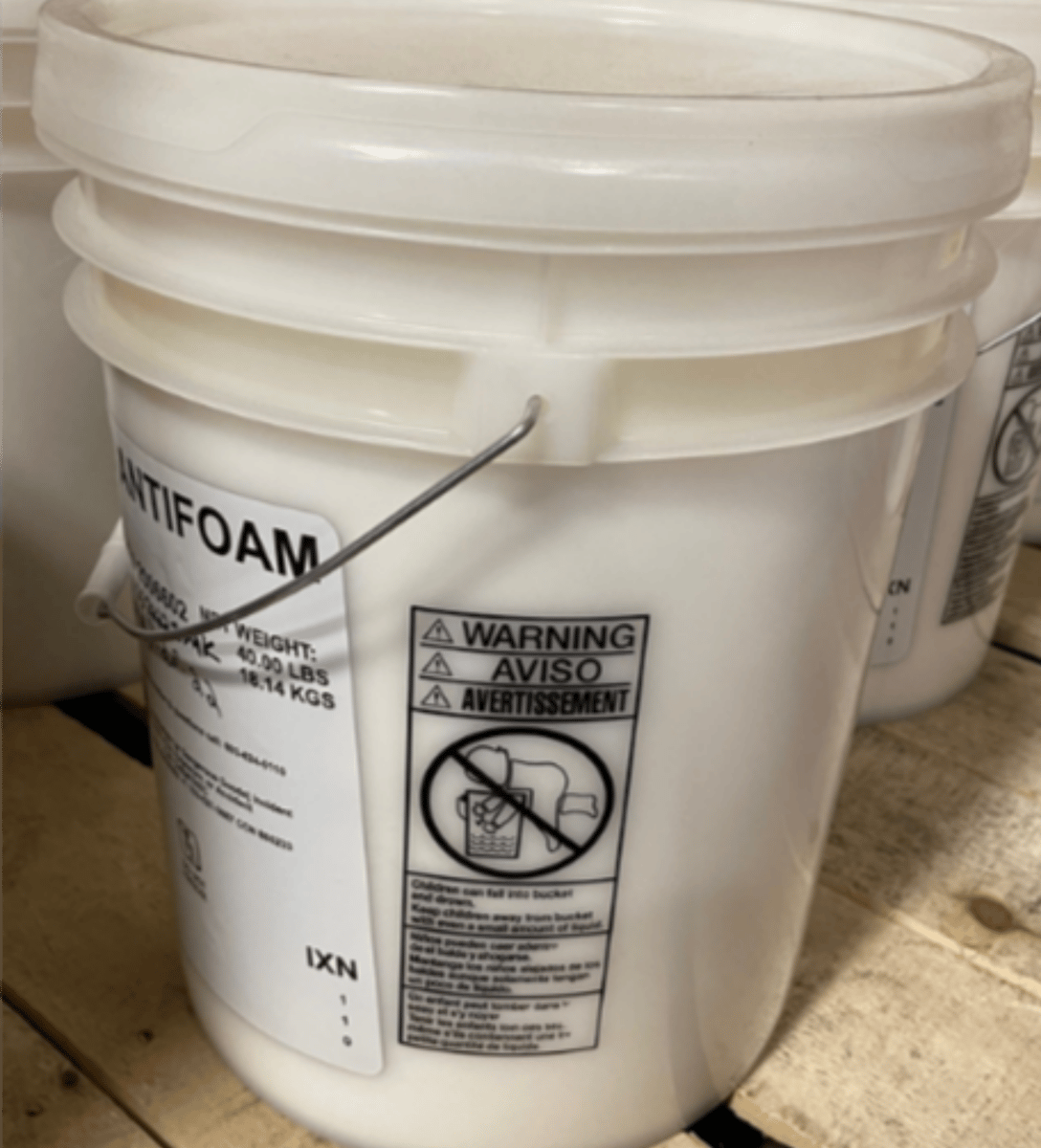

EZ-DF3000 Defoamer - 5 Gal. Pail

5 gallon pail of defoamer. Add to feed tank or dryer tank as needed to control foaming.

Eliminate liquid waste hauling with EZ-Dry!

Ready to ditch the wastewater hauling trucks and embrace a cleaner, greener solution for wastewater removal?

Contact us today to discuss your specific needs and how our wastewater evaporator services can benefit your business. We can help you responsibly manage your water waste while saving money and protecting the environment.
