15-40 GPH GAS FIRED EZ-VAP

Ready to start evaporating wastewater and reducing your hauling costs?  The easy to install, compact, gas fired EZ-Vap wastewater evaporators from EZ Industrial Equipment evaporate 15, 25, or 40 GPH and require minimal floorspace.  Learn more below.

EZ-Vap G25 Panel View_edited_edited

GAS MODEL EZV-G15
(15 GPH)

  • Gas Fired - 205,000 BTU/hr
  • 15 gallons per hour
  • Available in 316L Stainless Steel or Carbon Steel for the wetted components
  • 135 gallon capacity tank
  • Footprint:  46" x 39" x 55" (L x W x H)
  • 120V-1PH power supply required
  • 1 Year Limited Warranty
EZ-Vap G25 Panel View_edited_edited

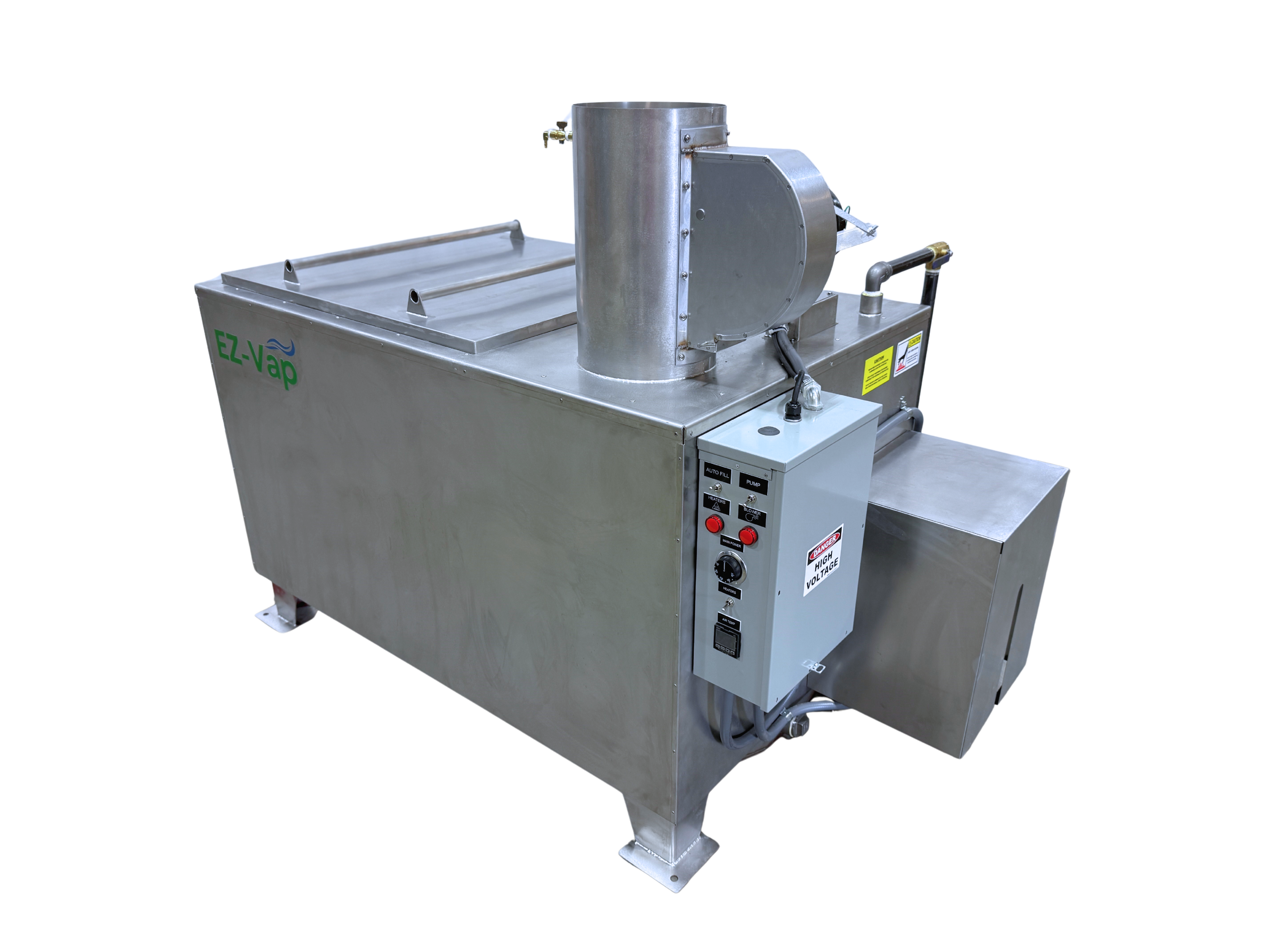

GAS MODEL EZV-G25
(25 GPH)

  • Gas Fired - 295,000 BTU/hr
  • 25 gallons per hour
  • Available in 316L Stainless Steel or Carbon Steel for the wetted components
  • 255 gallon capacity tank
  • Footprint:  74" x 39" x 55" (L x W x H)
  • 120V-1PH power supply required
  • 1 Year Limited Warranty
EZ-Vap G25 Panel View_edited_edited

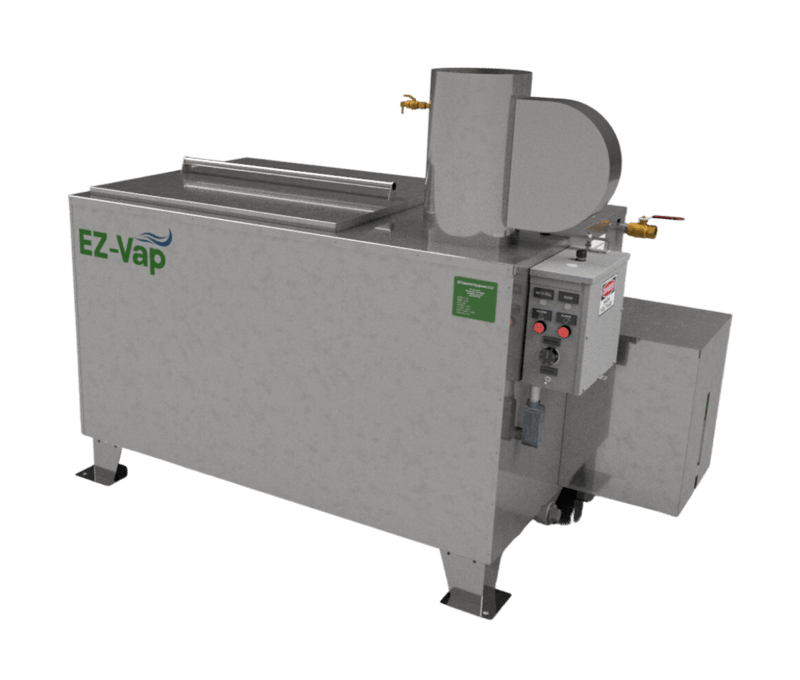

GAS MODEL EZV-G40
(40 GPH)

  • Gas Fired - 400,000 BTU/hr
  • 40 gallons per hour
  • Available in 316L Stainless Steel or Carbon Steel for the wetted components
  • 350 gallon capacity tank
  • Footprint:  74" x 39" x 78" (L x W x H)
  • 120V-1PH power supply required
  • 1 Year Limited Warranty

*Evaporation rate is based on tap water after reaching a boil. Evaporation rate may vary depending on altitude, ambient temperature and humidity, solids buildup on evaporator surfaces, boiling point elevation, exhaust stack configuration, off-spec power supply or gas pressure, characteristics of wastewater, etc.

KEY FEATURES & BENEFITS

A

Stainless Steel Exterior Skins

Stainless Steel Exterior Skins
B

Insulated Lid for Operator Safety

Insulated Lid for Operator Safety
C

10" or 16" Diameter Exhaust Stack

Exhaust stack is designed to optimize for efficient ventilation and minimal stack size to keep installation costs low.
D

1" FNPT Fill Port with Standpipe

The standpipe extends from the 1quot; FNPT feed inlet to below the water level inside the evaporator minimizing heat loss and turbulence when filling.
E

Easy Access to Heating Elements

Simply loosen nuts to slide-out, slide-in.  Evaporator stays in place, no tipping, cutting or welding required.
F

1" Valved Oil Skimmer

The 1" valve oil skimmer facilitates removal of floating oil or solids.
G

EZ-LOGIC™ Simple Controls

The core principle of EZ-Vap is simplicity of operation.  No programmable controllers!  There are only two switches for the operator to toggle.
H

Anchor Holes in Foot Pads

1/2quot; holes in foot pads allow anchoring if you would like to bolt unit to floor.
I

Optional Auto-fill Pump & Controls

Pump and controls automatically fill evaporator when low-level is reached and shut down the system when the feed tank is empty.

OPTIONS & ACCESSORIES

60581c6035b5cdbf4eab09d06d47f3f4.image.370x370

Self-Priming Feed/Cleanout Pump

The 50 gpm self-priming centrifugal pump is used to fill the evaporator from a nearby feed tank or pit. Energized manually by a toggle switch on the control panel or automatically by the auto-fill system. Pump can also be used to empty the evaporator when used in conjunction with the 3-way valve and suction wand/hose assembly (suction wand sold separately). Heavy duty cast iron, 50 gpm, with 1/2 HP motor.

Auto-Fill Assembly_ Pump

Auto-Fill Assembly w/Pump

The EZ-Vap auto-fill assembly includes the components and controls to facilitate automatic filling of the evaporator. The EZ-Vap control panel will call for fill when the evaporator is at low level, and will turn off the heating system when the feed tank is empty. The auto-fill system uses a timed sequence to determine when the feed tank is empty so no level control is needed in the feed tank. Auto-fill assembly includes 3-way valve, centrifugal feed/cleanout pump, feed line piping, high level safety switch, and automation controls.

DSCF4438_edited_edited

Suction Wand/Hose Assembly

Ergonomically designed rigid CPVC wand with 20' x 1" flexible vacuum hose used to pump water from a feed tote or tank into the evaporator and/or to vacuum concentrated liquid waste out of the evaporator.  Discharge end of hose connects to the inlet of a 1" centrifugal pump (pump sold separately) using an included quick disconnect cam and groove fitting.  Includes foot valve and strainer on hose inlet.

HT-50 drum_edited_edited

EZ-DF3000 Defoamer - 5 Gal. Pail

5 gallon pail of defoamer. Add to feed tank or evaporator tank as needed to control foaming.
