Minimize Industrial Wastewater with EZ-Vap

Minimize, or completely eliminate your industrial liquid waste streams with our operator-friendly wastewater evaporators and dryers.  Whether your goal is reducing off-site hauling costs or achieving Zero Liquid Discharge (ZLD), our compact, high-efficiency systems seamlessly integrate into your facility's footprint.
EZ-Vap G25

On This Page, You Will Find:

  • Gas-Fired Evaporators: High-capacity natural gas or propane systems processing 15 to 40 GPH.
  • Electric Evaporators: Compact, efficient electric thermal systems processing 4 to 24 GPH.
  • Slurry Dryers: Heavy duty ZLD systems designed to reduce concentrated slurry or sludge to dry cake.

Jump Down To a Specific Product:

Natural gas is the most energy efficient and commonly utilized heat source for evaporation.

Gas Fired Evaporators (15-40 GPH)

In This Section, You'll Find

Available Models & Pricing

Features & Benefits

Options & Accessories

Specifications

ROI Calculator

Ready to start evaporating wastewater and reducing your hauling costs?  The easy to install, compact, gas fired EZ-Vap wastewater evaporators from EZ Industrial Equipment evaporate 15, 25, or 40 GPH and require minimal floorspace.  Learn more below.

EZ-Vap G25 Panel View_edited_edited

GAS MODEL EZV-G15
(15 GPH)

  • Gas Fired - 205,000 BTU/hr
  • 15 gallons per hour
  • Available in 316L Stainless Steel or Carbon Steel for the wetted components
  • 135 gallon capacity tank
  • Footprint:  46" x 39" x 55" (L x W x H)
  • 120V-1PH power supply required
  • 1 Year Limited Warranty
  • $14,995 - Carbon Steel
  • $19,995 - 316L Stainless Steel
BUILD NOW CONTACT SALES
EZ-Vap G25 Panel View_edited_edited

GAS MODEL EZV-G25
(25 GPH)

  • Gas Fired - 295,000 BTU/hr
  • 25 gallons per hour
  • Available in 316L Stainless Steel or Carbon Steel for the wetted components
  • 255 gallon capacity tank
  • Footprint:  74" x 39" x 55" (L x W x H)
  • 120V-1PH power supply required
  • 1 Year Limited Warranty
  • $17,995 - Carbon Steel
  • $23,995 - 316L Stainless Steel
BUILD NOW CONTACT SALES
EZ-Vap G25 Panel View_edited_edited

GAS MODEL EZV-G40
(40 GPH)

  • Gas Fired - 400,000 BTU/hr
  • 40 gallons per hour
  • Available in 316L Stainless Steel or Carbon Steel for the wetted components
  • 350 gallon capacity tank
  • Footprint:  74" x 39" x 78" (L x W x H)
  • 120V-1PH power supply required
  • 1 Year Limited Warranty
  • $26,995 - Carbon Steel
  • $34,995 - 316L Stainless Steel
BUILD NOW CONTACT SALES

*Evaporation rate is based on tap water after reaching a boil. Evaporation rate may vary depending on altitude, ambient temperature and humidity, solids buildup on evaporator surfaces, boiling point elevation, exhaust stack configuration, off-spec power supply or gas pressure, characteristics of wastewater, etc.

KEY FEATURES & BENEFITS

AStainless Steel Exterior Skins (click for info) BInsulated Lid for Operator Safety (click for info) C10" or 16" Diameter Exhaust Stack (click for info) D1" FNPT Fill Port with Standpipe (click for info) EEasy Access to Heating Elements (click for info) FEZ-LOGIC™ Simple Controls (click for info) GAnchor Holes in Foot Pads (click for info) HOptional Auto-fill Pump & Controls (click for info) EZ-Vap G25 7 10 25
A

Stainless Steel Exterior Skins

Stainless Steel Exterior Skins
B

Insulated Lid for Operator Safety

Insulated Lid for Operator Safety
C

10" or 16" Diameter Exhaust Stack

Exhaust stack is designed to optimize for efficient ventilation and minimal stack size to keep installation costs low.
D

1" FNPT Fill Port with Standpipe

The standpipe extends from the 1quot; FNPT feed inlet to below the water level inside the evaporator minimizing heat loss and turbulence when filling.
E

Easy Access to Heating Elements

Simply loosen nuts to slide-out, slide-in.  Evaporator stays in place, no tipping, cutting or welding required.
F

EZ-LOGIC™ Simple Controls

The core principle of EZ-Vap is simplicity of operation.  No programmable controllers!  There are only two switches for the operator to toggle.
G

Anchor Holes in Foot Pads

1/2quot; holes in foot pads allow anchoring if you would like to bolt unit to floor.
H

Optional Auto-fill Pump & Controls

Pump and controls automatically fill evaporator when low-level is reached and shut down the system when the feed tank is empty.

Electric evaporators are a great option for facilities with no natural gas or a preference for electrically operated equipment.

Electric Evaporators (4-24 GPH)

In This Section, You'll Find

Available Models & Pricing

Features & Benefits

Options & Accessories

Specifications

ROI Calculator

Ready to start evaporating wastewater and reducing your hauling costs using an electric evaporator?  The easy to install, compact, electrically heated EZ-Vap wastewater evaporators from EZ Industrial Equipment evaporate 4, 12, or 24 GPH and require minimal floorspace.  Learn more below.

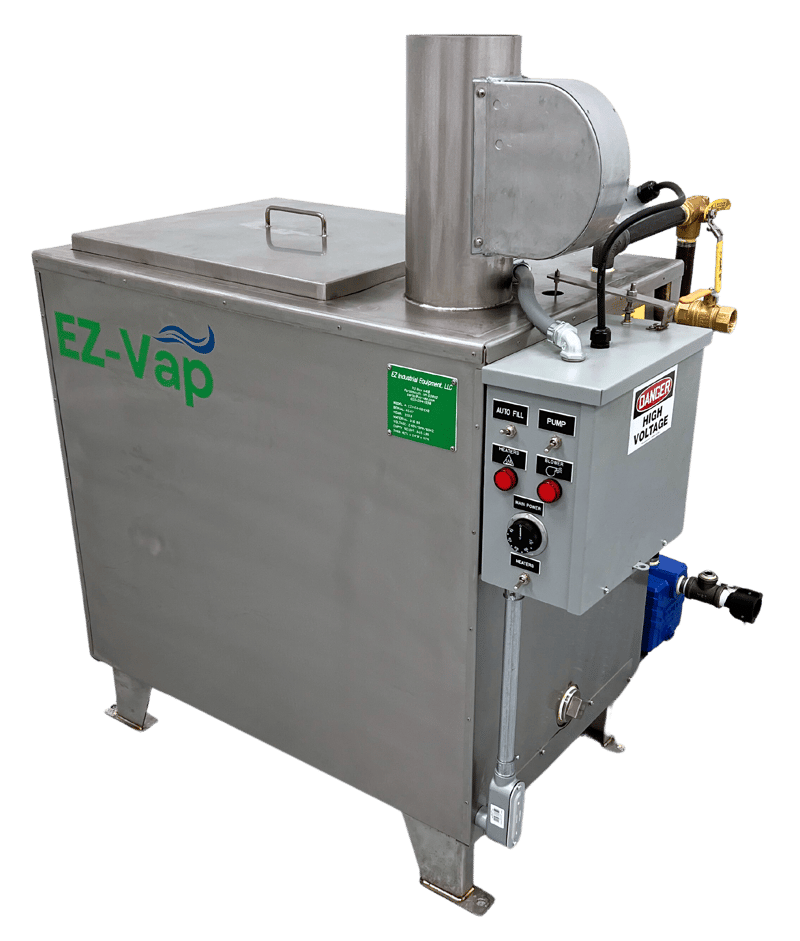

E4-1

ELECTRIC MODEL
EZV-E4
(4 GPH)

  • Electrically heated - 11.4 kW/hr
  • 4 gallons per hour
  • Available in 316L Stainless Steel or Carbon Steel for the wetted components
  • 87 gallon capacity tank
  • Footprint:  43" x 24" x 51" (L x W x H)
  • Available in 240V-3PH or 480V-3PH
  • 1 Year Limited Warranty
  • $7,995 - Carbon Steel
  • $10,995 - 316L Stainless Steel
BUILD NOW CONTACT SALES
E4-1

ELECTRIC MODEL
EZV-E12
(12 GPH)

  • Electrically heated - 34.2 kW/hr
  • 12 gallons per hour
  • Available in 316L Stainless Steel or Carbon Steel for the wetted components
  • 150 gallon capacity tank
  • Footprint:  43" x 35" x 62" (L x W x H)
  • Available in 240V-3PH or 480V-3PH
  • 1 Year Limited Warranty
  • $13,995 - Carbon Steel
  • $18,995 - 316L Stainless Steel
BUILD NOW CONTACT SALES
E4-1

ELECTRIC MODEL
EZV-E24
(24 GPH)

  • Electrically heated - 68.4 kW/hr
  • 24 gallons per hour
  • Available in 316L Stainless Steel or Carbon Steel for the wetted components
  • 250 gallon capacity tank
  • Footprint:  59" x 59" x 65" (L x W x H)
  • 480V-3PH
  • 1 Year Limited Warranty
  • $25,995 - Carbon Steel
  • $36,995 - 316L Stainless Steel
BUILD NOW CONTACT SALES

*Evaporation rate is based on tap water after reaching a boil. Evaporation rate may vary depending on altitude, ambient temperature and humidity, solids buildup on evaporator surfaces, boiling point elevation, exhaust stack configuration, off-spec power supply or gas pressure, characteristics of wastewater, etc.

KEY FEATURES & BENEFITS

AStainless Steel Exterior Skins (click for info) BInsulated Lid for Operator Safety (click for info) C6" or 10" Diameter Exhaust Stack (click for info) D1" FNPT Fill Port with Standpipe (click for info) EEasy Access to Heating Elements (click for info) FEZ-LOGIC™ Simple Controls (click for info) GAnchor Holes in Foot Pads (click for info) HOptional Auto-fill Pump & Controls (click for info) E4-1
A

Stainless Steel Exterior Skins

Stainless Steel Exterior Skins
B

Insulated Lid for Operator Safety

Insulated Lid for Operator Safety
C

6" or 10" Diameter Exhaust Stack

Exhaust stack is designed to optimize for efficient ventilation and minimal stack size to keep installation costs low.
D

1" FNPT Fill Port with Standpipe

The standpipe extends from the 1" FNPT feed inlet to below the water level inside the evaporator minimizing heat loss and turbulence when filling.
E

Easy Access to Heating Elements

Simply loosen nuts to slide-out, slide-in.  Evaporator stays in place, no tipping, cutting or welding required.
F

EZ-LOGIC™ Simple Controls

The core principle of EZ-Vap is simplicity of operation.  No programmable controllers!  There are only two switches for the operator to toggle.
G

Anchor Holes in Foot Pads

1/2" holes in foot pads allow anchoring if you would like to bolt unit to floor.
H

Optional Auto-fill Pump & Controls

Pump and controls automatically fill evaporator when low-level is reached and shut down the system when the feed tank is empty.

Browse specifications and optional accessories below, or contact us for additional information and support.

EZ-Vap Wastewater Evaporator Specifications

CLICK TO DOWNLOAD SPECS

Heat Source:
Evaporation Rate:
Energy Consumption:
Gas Supply Pressure:
Gas Inlet:
Power Supply:
Full Load Amps (No Fill Pump):
Tank Capacity:
Operating Volume:
Dimensions (L x W x H):
Shipping Dims. (L x W x H):
Empty Weight:
Approx. Shipping Weight:
Exhaust Stack:
Feed Inlet:
Drain:
Materials of Construction:
  EZV-E4
Heat Source: Electric
Evaporation Rate: 4 GPH
Energy Consumption: 11.4 kW/hour
Gas Supply Pressure: N/A
Gas Inlet: N/A
Power Supply: 240V-3PH or 480V-3PH
Full Load Amps (No Fill Pump): 29A (240V) or 14A (480V)
Tank Capacity: 87gal.
Operating Volume: 53 gal.
Dimensions (L x W x H): 43" x 24" x 51"
Shipping Dims. (L x W x H): 60" x 58" x 75"
Empty Weight: 400 lbs
Approx. Shipping Weight: 550 lbs
Exhaust Stack: 6" OD
Feed Inlet: 1" FNPT
Drain: 2" FNPT, plugged
Materials of Construction: SS316L or Carbon Steel
  EZV-E12
Heat Source: Electric
Evaporation Rate: 12 GPH
Energy Consumption: 34.2 kW/hour
Gas Supply Pressure: N/A
Gas Inlet: N/A
Power Supply: 240V-3PH or 480V-3PH
Full Load Amps (No Fill Pump): 86A (240V) or 43A (480V)
Tank Capacity: 150 gal.
Operating Volume: 112 gal.
Dimensions (L x W x H): 43" x 35" x 62"
Shipping Dims. (L x W x H): 60" x 58" x 75"
Empty Weight: 900 lbs
Approx. Shipping Weight: 1000 lbs
Exhaust Stack: 10" OD
Feed Inlet: 1" FNPT
Drain: 2" FNPT, plugged
Materials of Construction: SS316L or Carbon Steel
  EZV-E24
Heat Source: Electric
Evaporation Rate: 24 GPH
Energy Consumption: 68.4 kW/hour
Gas Supply Pressure: N/A
Gas Inlet: N/A
Power Supply: 480V-3PH
Full Load Amps (No Fill Pump): 84A
Tank Capacity: 250 gal.
Operating Volume: 200 gal.
Dimensions (L x W x H): 58" x 49" x 65"
Shipping Dims. (L x W x H): 84" x 60" x 75"
Empty Weight: 1500 lbs
Approx. Shipping Weight: 1600 lbs
Exhaust Stack: 10" OD
Feed Inlet: 1" FNPT
Drain: 2" FNPT, plugged
Materials of Construction: SS316L or Carbon Steel
  EZV-G15
Heat Source: Natural Gas or LPG
Evaporation Rate: 15 GPH
Energy Consumption: 205,000 BTU/hour
Gas Supply Pressure: 7" - 14" W.C.
Gas Inlet: 3/4" NPT
Power Supply: 120V-1PH
Full Load Amps (No Fill Pump): 20A
Tank Capacity: 135 gal.
Operating Volume: 85 gal.
Dimensions (L x W x H): 46" x 39" x 55"
Shipping Dims. (L x W x H): 60" x 58" x 75"
Empty Weight: 600 lbs
Approx. Shipping Weight: 700 lbs
Exhaust Stack: 10" OD
Feed Inlet: 1" FNPT
Drain: 2" FNPT, plugged
Materials of Construction: SS316L or Carbon Steel
  EZV-G25
Heat Source: Natural Gas or LPG
Evaporation Rate: 25 GPH
Energy Consumption: 295,000 BTU/hour
Gas Supply Pressure: 7" - 14" W.C.
Gas Inlet: 3/4" NPT
Power Supply: 120V-1PH
Full Load Amps (No Fill Pump): 20A
Tank Capacity: 255 gal.
Operating Volume: 194 gal.
Dimensions (L x W x H): 74" x 39" x 55"
Shipping Dims. (L x W x H): 84" x 60" x 85"
Empty Weight: 700 lbs
Approx. Shipping Weight: 800 lbs
Exhaust Stack: 10" OD
Feed Inlet: 1" FNPT
Drain: 2" FNPT, plugged
Materials of Construction: SS316L or Carbon Steel
  EZV-G40
Heat Source: Natural Gas or LPG
Evaporation Rate: 40 GPH
Energy Consumption: 400,000 BTU/hour
Gas Supply Pressure: 7" - 14" W.C.
Gas Inlet: 3/4" NPT
Power Supply: 120V-1PH
Full Load Amps (No Fill Pump): 20A
Tank Capacity: 350 gal.
Operating Volume: 290 gal.
Dimensions (L x W x H): 74" x 39" x 78"
Shipping Dims. (L x W x H): 84" x 60" x 85"
Empty Weight: 1200 lbs
Approx. Shipping Weight: 1300 lbs
Exhaust Stack: 12" OD
Feed Inlet: 1" FNPT
Drain: 2" FNPT, plugged
Materials of Construction: SS316L or Carbon Steel
*Evaporation rate is based on tap water after reaching a boil. Evaporation rate may vary depending on altitude, ambient temperature and humidity, solids buildup on evaporator surfaces, boiling point elevation, exhaust stack configuration, off-spec power supply or gas pressure, characteristics of wastewater, etc.

OPTIONS & ACCESSORIES

60581c6035b5cdbf4eab09d06d47f3f4.image.370x370

Self-Priming Feed/Cleanout Pump

The 50 gpm self-priming centrifugal pump is used to fill the evaporator from a nearby feed tank or pit. Energized manually by a toggle switch on the control panel or automatically by the auto-fill system. Pump can also be used to empty the evaporator when used in conjunction with the 3-way valve and suction wand/hose assembly (suction wand sold separately). Heavy duty cast iron, 50 gpm, with 1/2 HP motor.

Auto-Fill Assembly_ Pump

Auto-Fill Assembly w/Pump

The EZ-Vap auto-fill assembly includes the components and controls to facilitate automatic filling of the evaporator. The EZ-Vap control panel will call for fill when the evaporator is at low level, and will turn off the heating system when the feed tank is empty. The auto-fill system uses a timed sequence to determine when the feed tank is empty so no level control is needed in the feed tank. Auto-fill assembly includes 3-way valve, centrifugal feed/cleanout pump, feed line piping, high level safety switch, and automation controls.

DSCF4438_edited_edited

Suction Wand/Hose Assembly

Ergonomically designed rigid CPVC wand with 20' x 1" flexible vacuum hose used to pump water from a feed tote or tank into the evaporator and/or to vacuum concentrated liquid waste out of the evaporator.  Discharge end of hose connects to the inlet of a 1" centrifugal pump (pump sold separately) using an included quick disconnect cam and groove fitting.  Includes foot valve and strainer on hose inlet.

HT-50 drum_edited_edited

EZ-DF3000 Defoamer - 5 Gal. Pail

5 gallon pail of defoamer. Add to feed tank or evaporator tank as needed to control foaming.

Stop wasting money hauling wastewater, calculate your ROI and take action today.

Calculate the ROI for a Wastewater Evaporator

Find out if a wastewater evaporator is right for your facility.

Try ROI Calculator
ez-vap-roi-calculator

Looking for a ZLD solution to convert your liquid waste stream to a solid cake for landfill disposal?

ez-dry1-1

EZ-DRY Slurry Dryer
(13 GPH)

  • $32,995
    316L Stainless Steel
  • $41,995
    2205 Duplex
  • Gas Fired or Electric Models
CONTACT SALES

Achieve ZLD with the EZ-DRY Wastewater Slurry/Sludge Dryer

Engineered for Efficiency — At 30% Lower Cost Than Comparable Systems

Ready to completely eliminate liquid waste hauling or liquid discharge from your facility? The easy to install, compact, gas fired or all-electric EZ-Dry slurry dryer from EZ Industrial Equipment reduces your waste stream or slurry to a dry solid. Eliminate liquid waste hauling with EZ-Dry!
